Mobile Computers

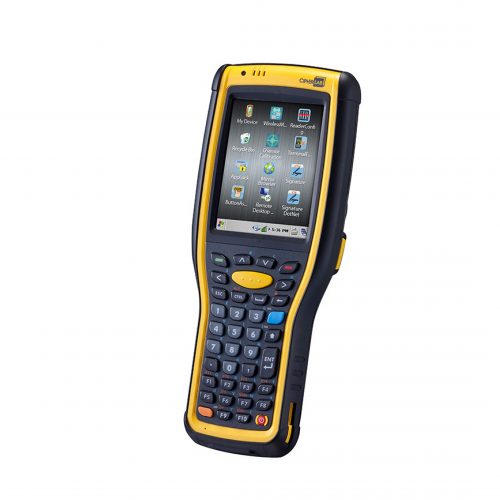

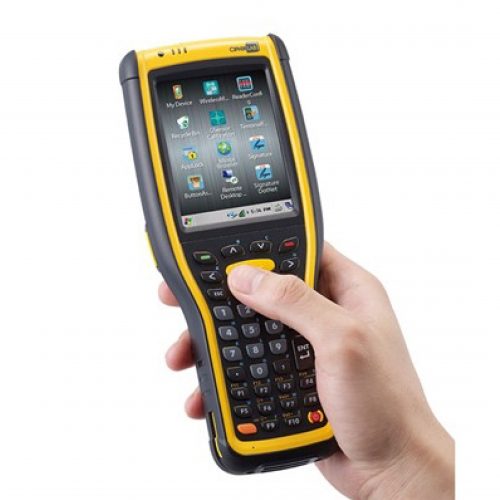

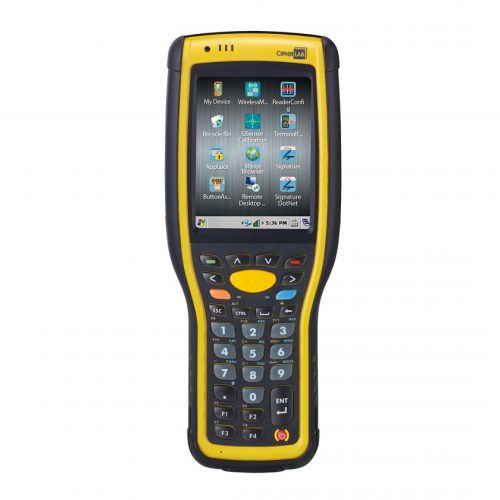

Cipherlab 9700 Industrial Mobile Computer

Designed for challenging requirements of warehousing, distribution centers and manufacturing industries, the CipherLab 9700 series mobile computer features excellent functionality and ruggedness for applications within four-wall environments. This handheld terminal comes with user-friendly software and utility support, which also provides new and updated benefits to increase user output.

Download Brochure

Send Enquiry
Category

The 9700 series mobile computer performs with versatility and functionality, while maintaining industrial ruggedness. Fully protected with IP65 standards, 9700 series’ multiple reader options of laser, near/far 2D imager and standard range 2D imager give users a wide range of data collection options. Its 3 keypad options deliver user friendly usage at all times, In particular, the 53 alphanumeric key serves as an alternative for terminal emulation.

Instant data transmission is made possible with CCXv4 certified IEEE 802.11 a/b/g/n and Push-to-talk features voice transmission which pushes productivity even higher in WLAN environments. The new 9700 mobile computer operates on Windows platform and TI OMAP 1GHz CPU which enables fast and easy application development. Additionally, essential accessories such as pistol grip, and software support makes operation simple with this handheld terminal.

Modularity Designs with Adaptable Reader Options
CipherLab’s 9700 series is a device that is designed with multiple tools in its scanning repertoire. The scanning options include laser, 2D imager, extended range laser, and near/far 2D imager and mid-range 2D imager. The extended range laser extends the barcode reading range to 45 ft / 9.1 m (100 mil retro-reflective). Supreme scanning versatility is also provided by the near/far scanning technology built-in which delivers the ability to auto-focus for reading both long and short distance. It gives flexibility to read both 1D and 2D barcodes from as close as 6 in/ 15 cm on 10 mil barcodes to over a whopping 50 ft/ 15 m for 300mil symbols. The 9700 series also features great modularity which allows for field replacement and on-site services.

Industrial Ruggedness for Dependability
The 9700 series mobile computer durability is designed to allow users to operate without worry. Its ruggedness is securely guaranteed with an IP65 rating seal which is capable of withstand exposure to dust, dirt and water splashes. Its toughness can also resist multiple drops from 1.8 m onto concrete and endure 1000 tumbles at 0.5 m, which promises protection from accidental drops or other unexpected damages. The protection standards allow the 9700 series to standout in the industry today. The durability that the 9700 series possess proves it to be a great asset under harsh environments.

Flexible Wireless Communications Connections and Efficient Communication
The 9700 series offers instant and safe data transmission with its wireless communication options. Its CCXv4 certified IEEE 802.11 a/ b/ g/ n on Windows® model keeps backend systems updated simultaneously granting users the ability to allow real-time network and access critical information. Users are able to receive real-time quality data transmission with The Bluetooth® communication. Class II, V2.1 which is also fully compatible with printers, accessories and peripherals. Furthermore, Push-to-Talk is a feature designed to provide better workflow and communication efficiency by supporting one-to-many features under WLAN conditions.

Industry Use

  • Transportation
  • Distribution Cente
  • Manufacturing
  • Cold Storage
  • Direct Store Delivery
  • Field Mobility
  • Retail

Specifications

Operating System

  • Windows® CE 6.0 R3 / Windows® Embedded Handheld 6.5.3

CPU

  • TI OMAP 3730 1GHz

Memory

  • 4GB Nand FLASH / 512MB DDR SDRAM

Expansion

  • Micro SD Slot With SDHC Support (up to 32 GB)

Operating Power

  • Rechargeable 3.7V 3600 mAh / 5400 mAh Li-ion Battery

Working Powers

  • 13

Wireless Communication

  • WLAN: Cisco® CCXv4 Certified IEEE 802.11 a/b/g/n WPAN: Bluetooth® Class II, V2.1 with Enhanced Data Rate (EDR)

Barcode Scanning

  • 1D Laser / Near / Far 2D Imager / Standard Range 2D Imager / Mid-Range 2D Imager (on request)

Display

  • 3.5” VGA/ QVGA TFT color LCD with LED backlight, Sunlight readable resistive Touch Panel

Keypad

  • 30-key / 38-Key Numeric and 53-Key Alphanumeric keypads with LED backlight

Size

  • 214 mm x 87 mm x 47 mm

Weight

  • 447g (3600 mAh) / 478g (5400 mAh)

Impact Resistance

  • SGS Certified 1.8 m Multiple drops onto concrete (MIL-STD-810G test standard) IP65 / 500 (1 m) and 1000 (0.5 m) tumbles
