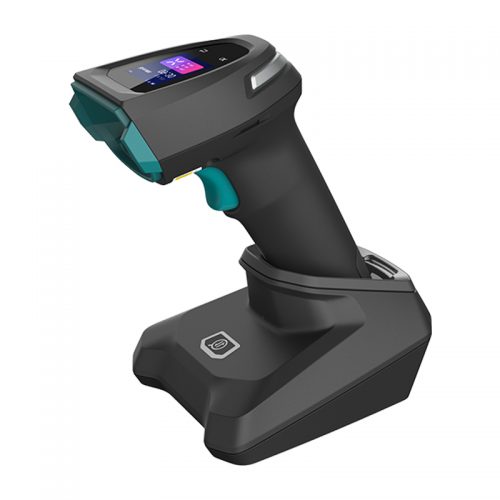

iData J16 Wireless Smart Scanner

iData J16 Wireless Smart Scanner

iData J16 Wireless Smart Scanner has a touch screen display with simple interaction. The 1.5 inch HD screen can display information clearly, touch screen operation can set scanning, Bluetooth, Wi-Fi, prompt etc quickly. You won’t miss any message by the 130DB high decibel humanised reminder.

Description

iData J16 Wireless Smart Scanner has a touch screen display with simple interaction. The 1.5 inch HD screen can display information clearly, touch screen operation can set scanning, Bluetooth, Wi-Fi, prompt etc quickly. You won’t miss any message by the 130DB high decibel humanised reminder.

  • Image Sensor: 1280 x 800 pixel
  • Scanning Accuracy: ≥ 3.33mil
  • Size: (D) 74.69mm (H) x 84.32mm(W) x 64.68mm (D)
  • Weight: Scanner – 215g, cradle – 193g
  • Operating Voltage: 4.5V~5.5V(DC)
  • Physical Parameter: USB-HID,USB-CDC,RS232
Overview

Performance

  • Bluetooth Efficient Connection
    The scanner connects the base by Bluetooth 5.0, it supports long-distant wireless scanning. The transmission distance could reach up to 70m.
  • Wi-Fi Scanner
    You can connect the scanner with AP or computer by Wi-Fi without the base to transmit the data. The firmware can upgrade directly under the Wi-Fi condition.
  • Convenient Scanner Configuration System
    You can set your scanner by PSSA/MSSA. This system contains barcode setting, decoding attribute setting, reading modes setting etc.
  • It Supports Multiple Middleware
    The health code access is available. It can be widely used for epidemic prevention management in hospitals, offices and communities. It supports development of UDI identification code middleware. It can be used for drug management in hospitals. It supports development of different middleware, which optimises the scanner with more possibilities.

5 Advantages of the Self-innovative Scanning Engine

  • Comprehensive Reading Abilities
    All mainstream barcodes can be read easily
  • Efficient Decoding Abilities
    It can decode up to 20 times/s
  • Efficient Decoding Abilities
    It can decode up to 20 times/s
  • Barcode Learning Ability
    It can learn the hard-to-recognised barcodes quickly
  • Multispectral Dimming Technology
    It could adjust light’s conditions base on the environment
  • Polarised Light Elimination
    It could filter the reflect light automatically

Flexible Charging, Long Lasting Battery Life

  • The scanner equips with 2600mAH powerful battery, which can scan up to 80,000+ times, and works more than 10 hours per charge. The base charger can charge the scanner whenever you place it into the base. It keeps high battery capacity all the time. It adopts an excellent battery management system, which supports low consumption mode, reduce unnecessary power waste.
Applications















J16 Smart Specifications

Performance Parameters

Image Sensor: 1280*800 pixel
Light Source: WHITE,RED,BLUE

Scan Performance

Scanning Accuracy: ≥3.33mil
Scanning Angle: Pitch: ±60°; Deflection (skew): ±45°; Rotation (tilt): 360°
Angular Field of View: Horizontal: 44.3°, vertical: 28.4°, diagonal: 51°
Motion Tolerance: 13mil UPC 2m/s (up to 8m/s in high motion fault tolerance mode)
Minimum  Reading Contrast: 15%

Physical Parameter

Size: 174.69mm(H)*84.32mm(W)*64.68mm (D)
Weight: Scanner: 215g, cradle: 193g
Operating Voltage: 4.5V~5.5V(DC)
Current Value: 40mA (The cradle is in a non-charging state)
Physical Parameter: USB-HID,USB-CDC,RS232
Prompts: Speaker (voice) prompt/vibration prompt/LED prompt/screen prompt
Sealing: IP65
Shell Material: PC+ABS

Operating Environment

Working Temperature: 0℃~50℃
Storage Temperature: -20℃~70℃
Humidity: 5%~95% (no condensation)
Drop Specification: 1.8m concrete floor dropped several times
Ambient Lighting: 0Lux~100000Lux
Electrostatic Protection: ±15KV (air discharge), ±8KV (contact discharge)

Wireless Transmission Performance/BT

Bluetooth: Bluetooth 5.0
Frequency Band: 2402MHz~2480MHz
Transmission Distance: Up to 70m in open environment
Communication Mode: Real-time mode/batch mode
Battery Capacity: 2600mAh
Charging Time: 5 Hours(5V/2A)
Operating Hours: ≥12h
Scan Times: Up to 100,000 times or more (when the battery is fully charged)

Wi-Fi

Wireless Frequency Band: 2.4GHz~2.4835GHz(ISM Band)
Transmission Rate: Up to 72.2Mbps
WLAN: IEEE 802.11b/g/n

Relevant Regulation

Electrical Safety: IEC 60950
Environment Parameters: RoHS directive 2011/65/EU,GB/T 26572
LED Safety: IEC 62471:2006
EMI/RFI: FCC Part 15 Class B,EN 55032:2015,EN 55035:2017

Decoding Range

3.33mil Code 128: XD(Ultra-high Density):0.5cm~3cm(0.016inch to 0.1inch)
HD(High Density):2.5cm~14cm(0.98inch to 5.51inch)
SR((High Density)):9.5cm~16.0cm (3.74inch to 6.30inch)
10.83mil Code 128: XD(Ultra-high Density):0.5cm~5cm(0.016inch to 0.16inch)
HD(High Density):0.5cm~19cm(0.2inch to 7.48inch)
SR(Standard Distance):2.0cm~50.0cm (0.79inch to 19.69inch)
5.83mil QR Code: XD(Ultra-high Density):0.5cm~3cm(0.016inch to 0.1inch)
HD(High Density):3.5cm~8.5cm(1.38inch to 3.35inch)
SR(Standard Distance):11.0cm~13.5cm (4.33inch to 5.31inch)
10.83mil Code 128: XD(Ultra-high Density):0.5cm~3cm(0.016inch to 0.1inch)
HD(High Density):3.5cm~8.5cm(1.38inch to 3.35inch)
SR(Standard Distance):11.0cm~13.5cm (4.33inch to 5.31inch)

Accessories

1D: Codabar,Code 11,Code 128,Code 32,Code 39,Code 93,EAN 13,EAN 8,UPCA,UPCE,IATA 2 of 5,Interleaved 2 of 5,Matrix 2 of 5,Straight 2 of 5,MSI/PIessey,GS1 DataBar etc
2D: Aztec,Data Matrix,MicroPDF 417,PDF 417,QR,Micro QR etc

Code System

Standard Accessories: Data cable*1, power cable*1, user manual*1
Optional Accessories: Bracket, serial port cable
