Polaroid P8600 Retransfer Card Printer (600dpi)

Polaroid P8600 double-sided retransfer card printer offers edge-to-edge, high-resolution 600 DPI print capability for clear, sharp imagery, and micro printing. The superior print quality provides the perfect solution for businesses across a wide range of sectors that require high definition printing using blank white card stock.

With optional contact/contactless smart encoding and magnetic stripe encoding technologies, the Polaroid P8600 card printer is the perfect option for businesses requiring greater security. The printer has a 100 card input/output hopper with the option to upgrade to 250 for businesses needing increased quantity throughput.

Printing Capability: Dual-sided, full bleed
Print Technology: Retransfer
Resolution: 600dpi
Printable Area: Edge to edge printing over the card surface
Print Speed (YMCK): 27.5 sec / single side | 55 sec / dual side (YMCK/K)
Card Thickness: 0.25mm ~ 1.00mm
Card Size: 54.0mm x 85.6mm

Download Brochure

Features
Specs
Make An Enquiry

Versatility

Encoding functionality (magnetic, contact IC, RFID)
Laminator connection (single/dual side)
Various media substrates and security features available

High-Quality

The 600DPI print resolution allows printing small characters (microtext) as a security feature.

Secure

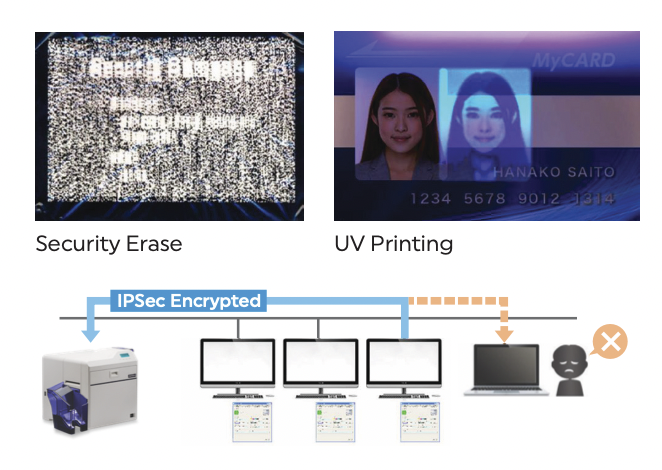

The Security Erase function (patented) prevents leakage of personal information on the ink
ribbon. It scrambles information beyond recognition to protect this data.
For network security, the printer supports IPSec (IPv6 / IPv4). Encryption protects personal
information on a network.

Durability

Dual InTM film protection INTM2
Patch/Overlay layer security

Applications

Corporate ID Cards
Student ID Cards
Gift Cards
Loyalty Cards
Membership Cards
Transportation Cards

Printing system: Dye sublimation retransfer
Printing resolution: 600dpi x 600dpi
Printable area: Edge to edge printing over the card surface
Print Speed (YMCK): 27.5 sec / single side | 55 sec / dual side (YMCK/K)
Card Thickness: 0.25mm ~ 1.00mm
Card Size: 54.0mm x 85.6mm
Card Hopper: 100 cards (250 cards hopper under development)
Interface: USB2.0 (Hi-speed / Full Speed) Ethernet (100BASE-TX / 10BASE-T)

Software environment (Driver and Tools):

Microsoft® Windows®10 32bit/64bit
Microsoft® Windows®8 (including 8.1) 32bit/64bit
Microsoft® Windows®7 (SP1) 32bit/64bit
Microsoft® Windows® Server 2012 64Bit
Microsoft® Windows® Server 2008 R2 (SP1) 64Bit

Operating environment conditions:

Temperature: 15°C to 30°C
Humidity: 35% to 70% (YMCK ink, No condensation)
Mass approx. 13.7kg
Dimensions 343mm x 335mm x 322mm (W*H*D) (without card stacker)

Consumables:

YMCK Ink Ribbon: 1000 images/roll
Re-Transfer Film: 1000 images/roll

Encoding Options:

Magnetic Encoder
Contact/contactless Encoder
